Intelligent board computer operation tutorial R05/R10 series
更新时间:2020-09-14 19:52:29•点击:1228267 • service support
Daly official PC download address:https://dalyelec.cn/daly/zytool.zip
Alternate Google Cloud Disk Download URL:https://drive.google.com/file/d/1OXCHvjAHyVCa7Y1x8pk6tgl_bhVTnwkL/view?usp=sharing
After clicking the link to download the host computer, unzip the file to get
①Double-click this application and click Next

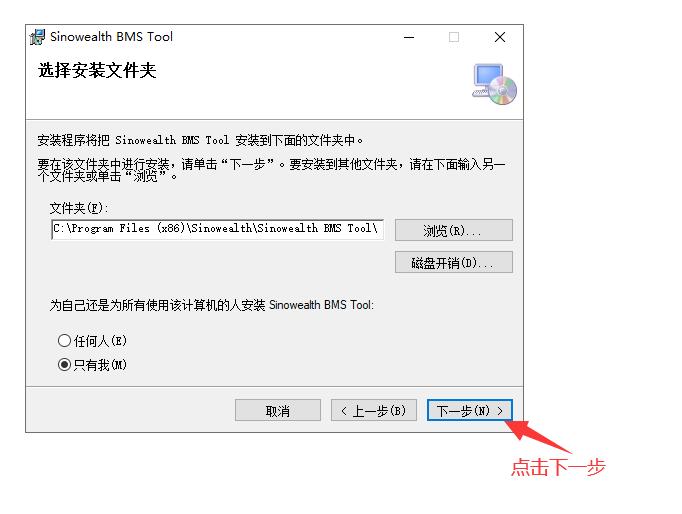

②Click one more step
![](/uploads/image/20200914/1600096171.jpg)

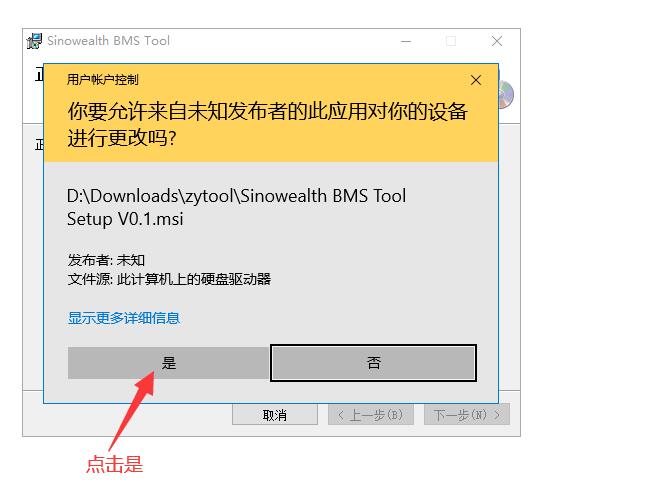

③Then click next
![](/uploads/image/20200914/1600090503.jpg)
④Then click next
![](/uploads/image/20200914/1600089756.jpg)

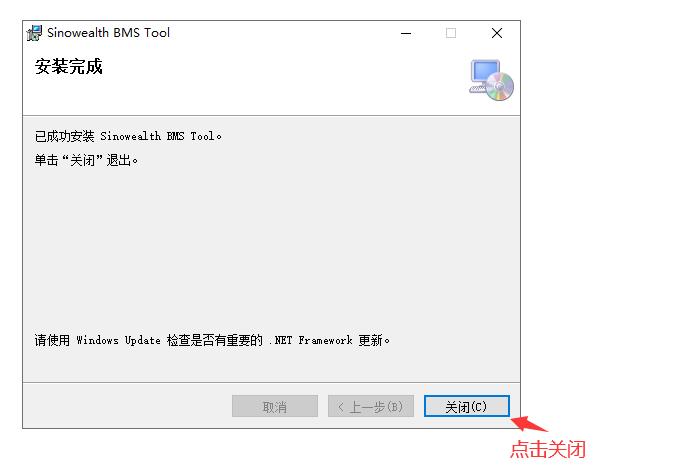

⑤After clicking close, the installation is successful. An icon will appear on the desktop.
![](/uploads/image/20200914/1600089768.jpg)
——————————————————————————————————————————————————————————————————————————————————————
1.1Double-click BMS Tool to enter the host computer interface
![](/uploads/image/20200914/1600092309.jpg)

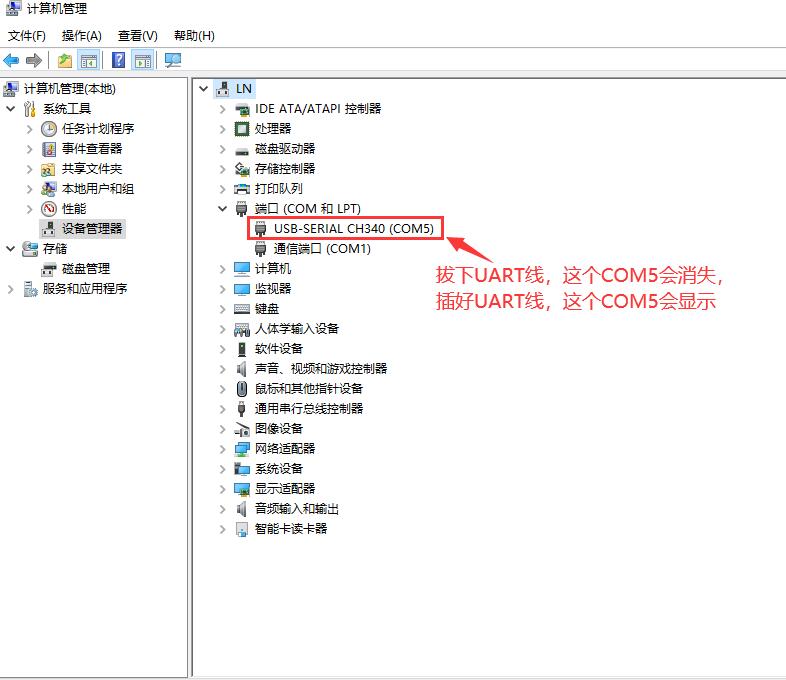

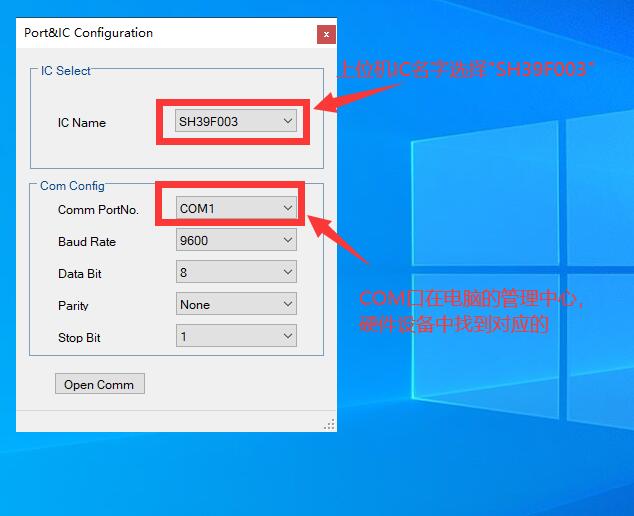

PS: In the management center of the computer, check the corresponding COM port (comX will disappear when unplugged, and comX will be displayed again when plugged in)
![](/uploads/image/20200914/1600095019.jpg)

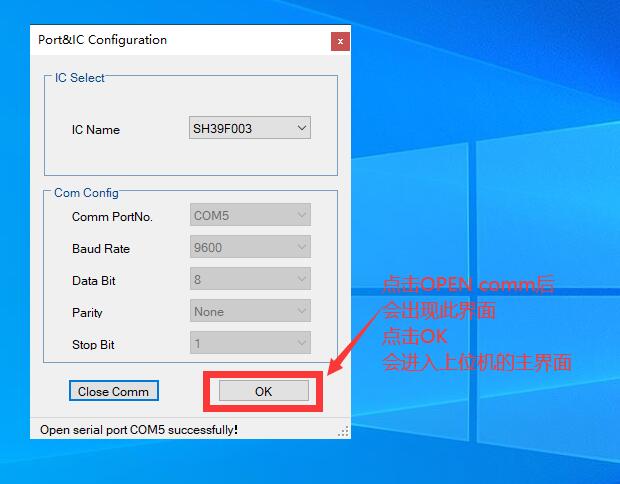

1.2 Click OPEN COM, the following interface will appear, and then click OK to enter the main interface of the software.
![](/uploads/image/20200914/1600096090.jpg)
1.3Enter the main interface of the PC upper computer

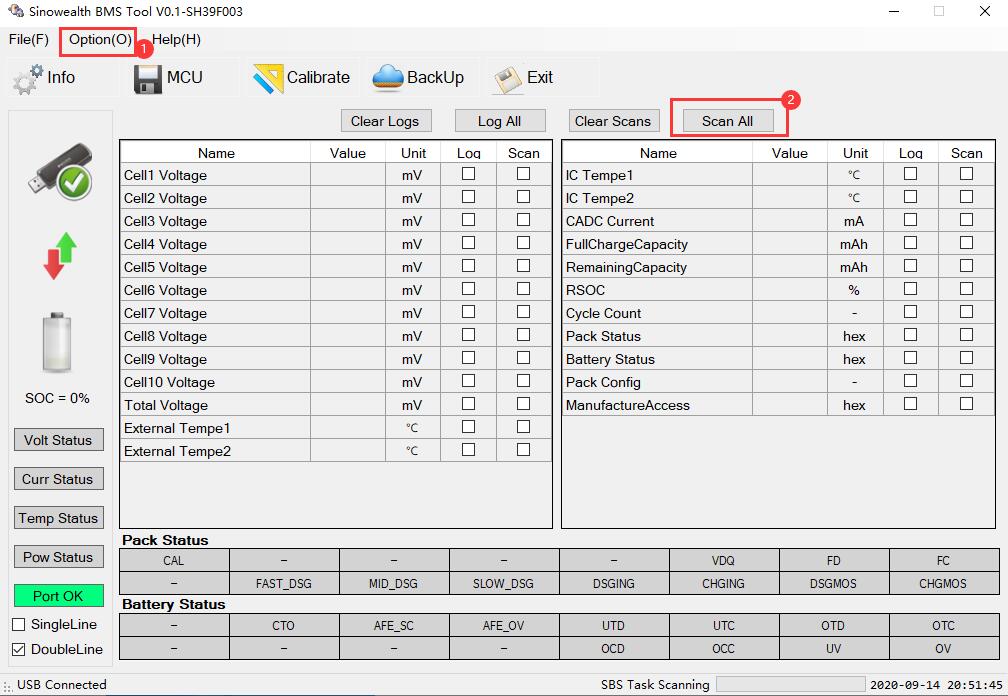

In Option①, the language can be set here, and the language can be set to Chinese here. Click Scan All② to read the battery data

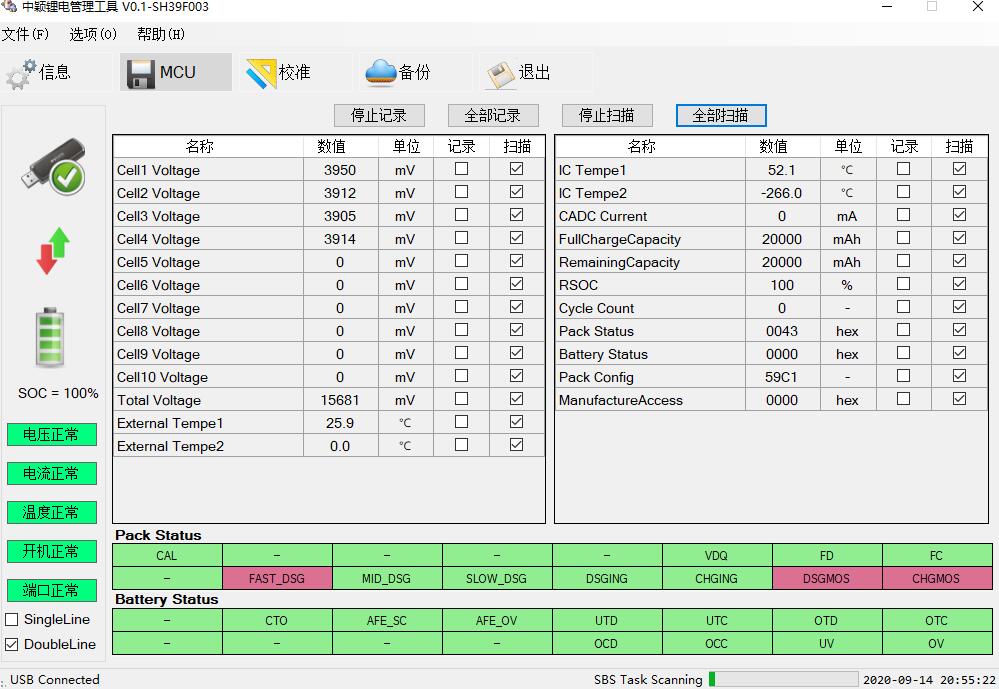

1.4 Scan the data to get the interface of the total data, this is a 4-string battery pack
![](/uploads/image/20200914/1600095432.jpg)

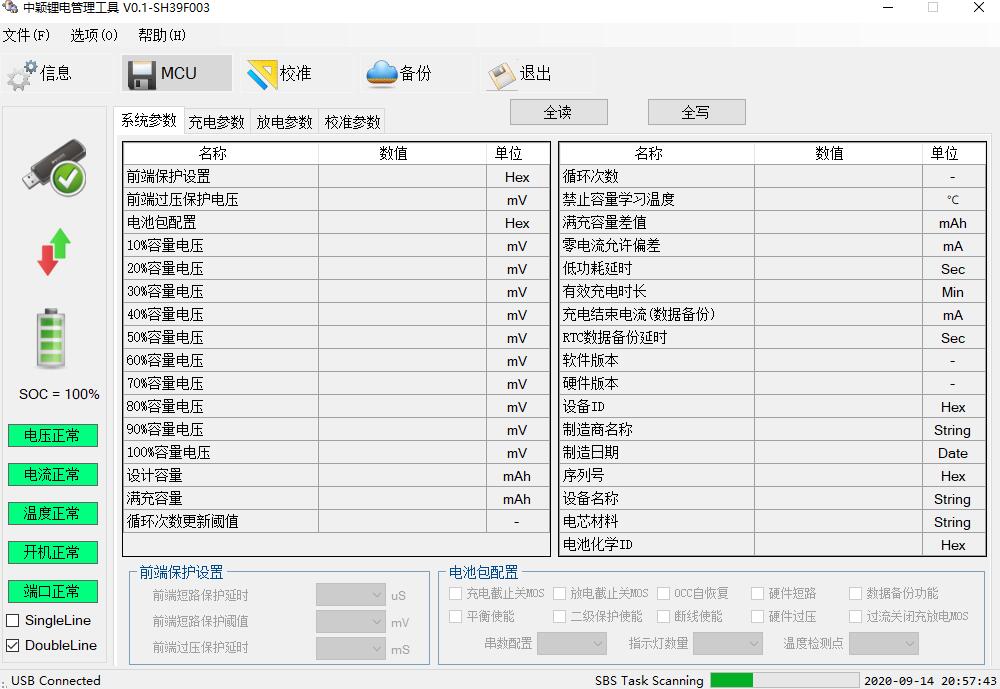

1.5 In the MCU interface, you can set the system parameters
![](/uploads/image/20200914/1600097810.jpg)

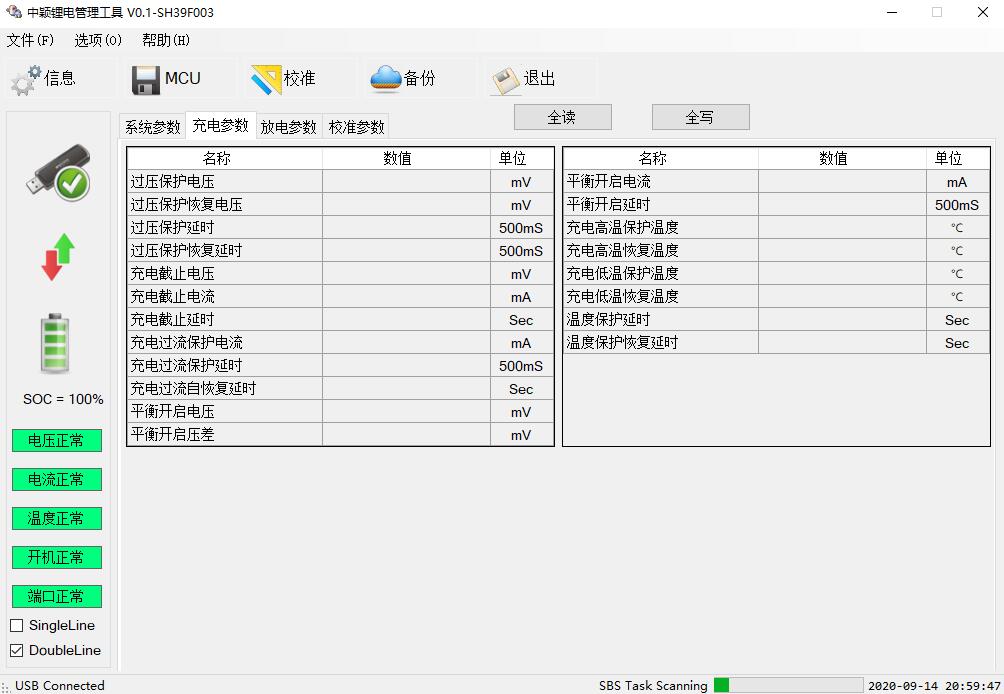

1.5.1 The charging parameters in the MCU can be set to the following parameters
![](/uploads/image/20200914/1600096395.jpg)

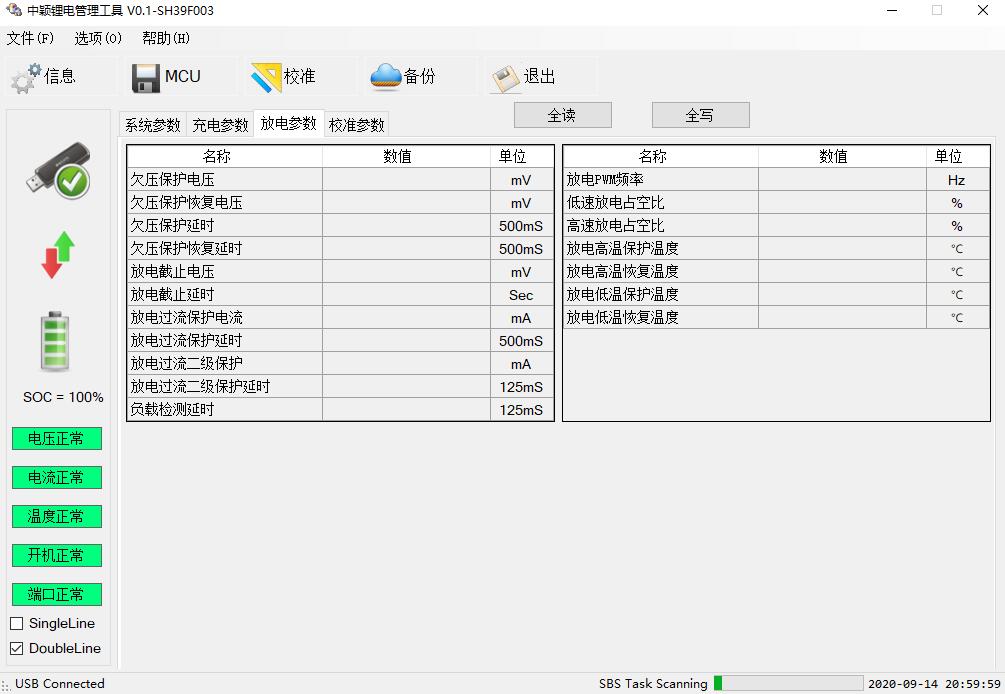

1.5.2 Discharge parameters
![](/uploads/image/20200914/1600092707.jpg)

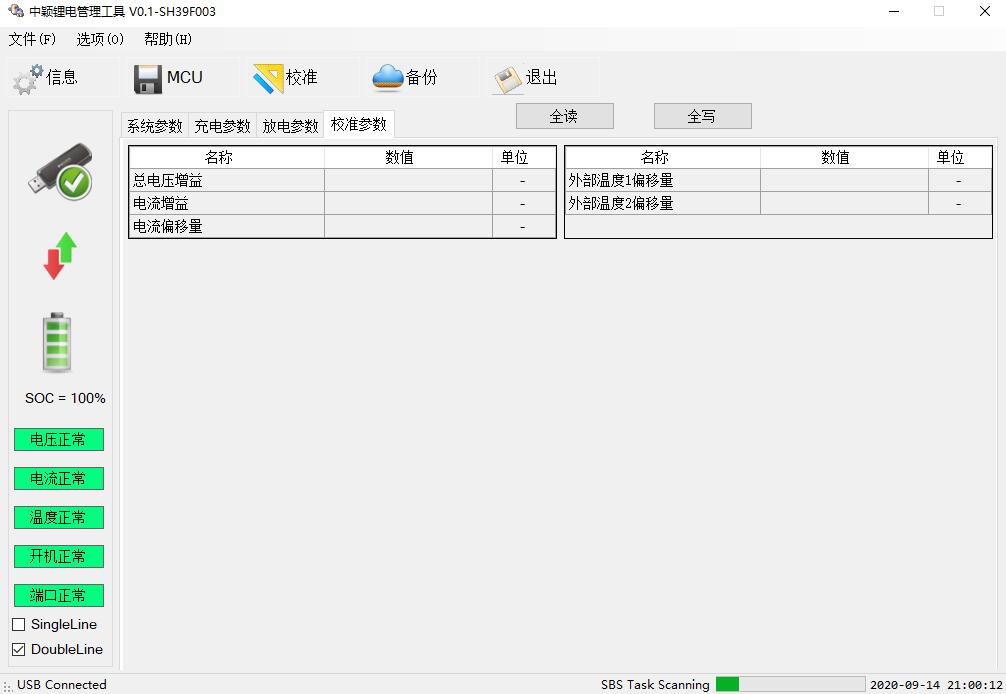

1.5.3 Calibration parameters
![](/uploads/image/20200914/1600096849.jpg)
